The IFR26650 8S2P 25.6V 7.2Ah LiFePO₄ battery pack is widely used in solar tracking systems, telecom backup power supplies, portable instruments, and compact AGVs
Ürün ayrıntıları:
| Menşe yeri: | Çin |
| Marka adı: | TAC |
| Model numarası: | FR26650 8S2P 25,6V 7,2Ah |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | Pazarlığa izin ver |
|---|---|
| Fiyat: | Allow negotiable |
| Ambalaj bilgileri: | Pazarlığa izin ver |
| Teslim süresi: | Pazarlığa izin ver |
| Yetenek temini: | Pazarlığa izin ver |
|
Detay Bilgi |
Ürün Açıklaması

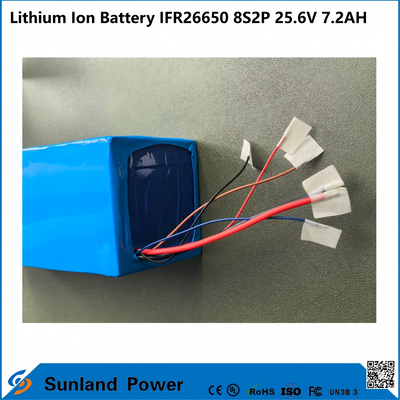

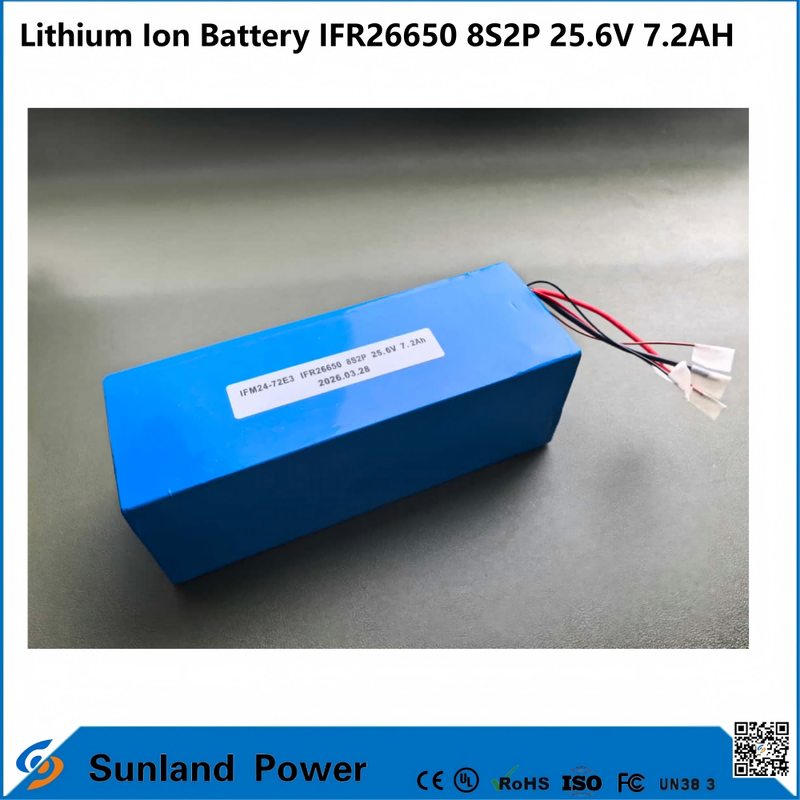

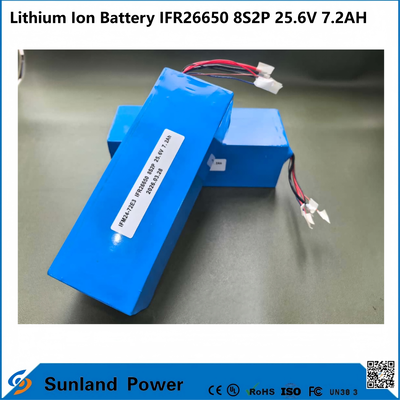

IFR26650 8S2P 25.6V 7.2Ah LiFePO₄ battery pack
Product Specification 产品技术规格
Secification of batter ack 电池 常 技 参数
| No. (序号) |
Item (项目) |
General Parameter (常规参数) | Remark (备注) | |
| 1 |
Combination method (组合方式) |
8S2P | 26650(3.2V/4Ah)/16pcs | |
|
2 |
Rated Capacity (额定容量) | Typical (标称容量) | 8Ah |
Standard discharge (0.2C) after Standard charge (标准充电后 0.2C 标准放电) |
| Minimum (最小容量) | 7.8Ah | |||
| 3 | Nominal voltage标称电压 | 25.6V | 0.5 C,20~29.2V | |
| 4 | Factory Voltage (出厂电压) | 25.2～27.2V |
Delivery voltage, Within 10 days from Factory 交货电压,在出厂 10 天内 |
|
|
5 |
Voltage at end of Discharge (放电终止电压) |
20V | Discharge Cut-offVoltage (放电截止电压) | |
| 6 |
Standard Charging Voltage (标准充电电压) |
29.2V | CC/CV | |
|
7 |
Internal Impedance (内阻) |
≤ 180mΩ |
Internal resistance measured at AC 1KHZ after 50% charge (半电态下用交流法测量内阻) The measure must uses the new batteries that within one week after shipment and cycles less than 5 times (使用出货后不到一个星期及循环次数少于 5 次的新电池测量) |
|
|
8 |
Standard charge current 标准充电电流 |
1.6A |
Constant Current 1.6A；Constant Voltage 29.2V；0.05A cut-off； (持续电流:1.6A；持续电压:29.2V 截止电流:0.05C) |
|
|
9 |
Maximum Continuous charge current 最大持续充电电流 |
8A |
Constant Current 8A；Constant Voltage 29.2V；0.05A cut-off (持续电流:8A；持续电压:29.2V；截 止电流:0.05C |
|
| 10 |
Standard discharge current 标准放电电流 |
1.6A |
Constant current:1.6A；end voltage: 20V (持续电流:1.6A；截止电压:20V) |
|
|
11 |
Maximum Continuous discharge current 最大持续放电电流 |
10A |
Constant current:10A；end voltage:20V (持续电流:10A 截止电压:20V) |
|
12 |
Peak Discharging Current 峰值放电电流 |
15A |
≤ 10S |
|
13 |
Operation Temperature Range (工作温度范围) |
Charge (充电) : 0~45℃ |
60±25%R.H. Bare Cell (单体电池储存湿度范围) |
| Discharge (放电) : -20~60℃ | |||
|
14 |
Cycle life循环寿命 |
Number of cycles 循环次数 ≥ 1500 cycles |
Test conditions:80%DOD,0.2C Standard discharge after Standard charge at 25±2℃; 测试条件:在 25±2℃ , 0.2C 标准充放电,放电深度为 80%DOD. |
|
15 |
Storage Temperature Range (储存温度范围) |
Less than 1months :0~35℃ (小于 1 月:0~35℃) |
The battery should be cycled once per three months. Recommended storage temperature is25±2°C of SOC 50%~60%.电池每三个月循环一次,建议储存温度为 25±2°C, SOC 50%~60%. |
|
less than 6 months: 0~25℃ (小于 6 个月:0~25℃) |
|||
|
less than12 months: 10~25℃ (小于 12 个月:10~25℃) |
|||
| 16 | Charge &discharge port 充放电口 | UL3135 16AWG 硅胶线 红(正)黑(负)色外露 100mm |
详见示意图 |
| 17 | RS485 communication RS485 通讯口 | UL1007 #26AWG 线 蓝(RS485A)棕(RS485B),外露 100mm | |
| 18 | On/off switch弱电开关线 | UL1007 #26AWG 线 红(K+)黑(K-),外露 100mm | / |
| 19 | Dimensions (尺寸) | 220*80*85mm | L*W*H |
| 20 | Weight (重量) | Approx :1.8kg | / |
| 21 | Label(标签) | Demand by customer按客户需求 | 详见示意图 |
